The Mech-Max B200 Wheel Drum Wood Chipper — Zonsen 999cc 35HP electric-start engine, 14″×12″ cutting roller, chips branches up to 8″ thick. Towable, with tail lights and a 7-pin plug.
The B200 Wood Chipper is powered by a 35hp 1000cc electric start gasoline engine, and equipped with a 45Ah 12V Lead-acid battery.
There are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement on one side of the feeding chute. When the feeding chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.
Similarly, on one side of the discharge chute, there are 2 buckles that can be quickly opened for easy cleaning of residual wood chips and blade replacement. When the discharge chute is open, the gasoline engine will trigger a limit switch and shut down to ensure safety during maintenance.
On the upper side of the feeding chute, there is an emergency stop button, and on the lower side, there is an emergency stop press bar. These can be used to stop the machine at any time in case of an emergency.
The core cutting component of the B200 Wood Chipper is a roller with a diameter of 14″ and a length of 12″. Such a large roller generates impressive inertia, providing maximum cutting force to effortlessly cut branches with a maximum diameter of 8″.
The B200 is equipped with two DOT-approved tubeless tires sized 19*7.00-8, and the wheelbase reaches an impressive 48″, providing enhanced stability when being towed.
The B200 is equipped with tail light, and on one side of the trailer, there is an American seven-pin plug. The plug can be connected to the towing vehicle when being towed, allowing the tail light of B200 to synchronize with the vehicle's braking and turning signals.
When the B200 is being towed, the two 13*5.00-6 tubeless tires need to be folded up. When the B200 is operational, they can be lowered. When the B200 needs to be pushed to a designated work area, the two wheels can be locked to ensure straight-line movement.
The entire discharge chute is stamped and welded together from two molds, providing an aesthetically pleasing design. The discharge chute can be fully opened, allowing for a clearer view of the blade box interior for maintenance and blade replacement. The top of the discharge chute can rotate 360 degrees.
| Engine | ZONSEN GB1000 |
|---|---|
| Feed Roller | 13.8 in |
| Engine Type | Air cooled 4-stroke OHV petrol engine |
| Knives Nos. | 2 x Blade; 1 x Anvil |
| Displacement/HP | 1000cc; 35hp |
| Knives Material | A8 (5Cr8MoVSi) |
| Rated Power | 23.5 kw/3600 rpm |
| Discharge Chute | 360 Degree Rotating |
| Max. Net Torque | 71.2 Nm/2500 rpm |
| Emergency Stop | Stop Bar + Button |
| Fuel Capacity | 4.76 gal |
| Towing | Tow Bar with 2 in Coupler |
| Starting | Electric Starting |
| Wheel | 19*7.00-8 Tubeless |
| Battery | 45Ah 12V Lead-Acid Battery |
| Wheel Base | 48 in |
| Belt | 4 x V-Belts |
| Package Method | Plywood Case |
| Belts Material | Kevlar |
| Weight (N.W./G.W.) | 705/798 lbs |
| Clutch | Centrifugal Clutch |
| Packing Size (L*W*H) | 50 x 30 x 49 in |
| Cutting Method | Drum |
| Machine Warranty | 1 Year |
| Max. Chipping Dia. | 8 in |
| Engine Warranty | 1 Year |
388 reviews
Assembly was pretty simple, although you’ll definitely want at least 2 people or a hoist of some sort to do it safely. Started right up no problem and has been working great. Has great self feeding for smaller branches which worked better than expected. Very powerful machine and happy with my purchase so far!

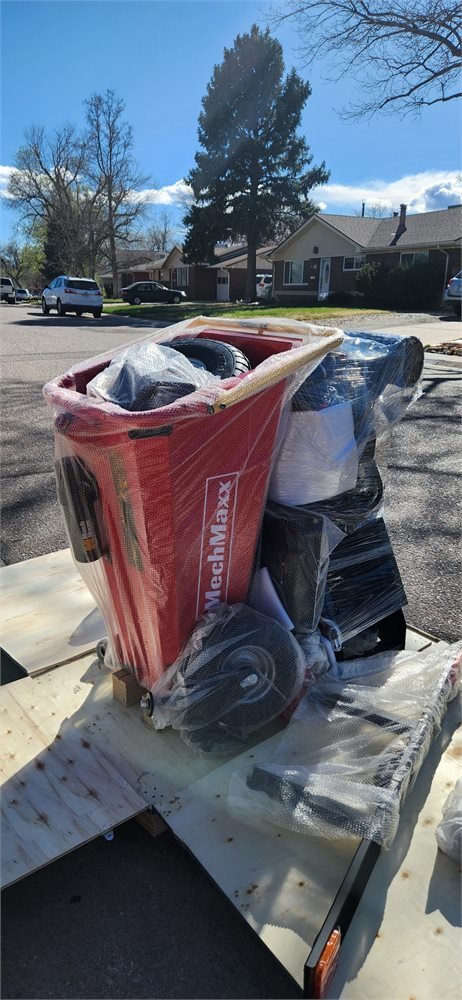

The unit arrived very quickly and was well-packaged in a wooden crate. I was able to complete the assembly by myself in about two hours. The machine is working great and has already produced a significant amount of wood chips. We are super happy with the purchase.
My B200 chipper arrived in a week after ordering and in perfect condition. Instructions were clear and assembly was straight forward. It fired right up, I’ve used it for about 3hrs and it has made quick work of chipping pine and black cherry branches and logs. It has effortlessly chipped everything I’ve thrown at it so far, this thing is a heavy beast! Very happy with my purchase.
Got this unit with the 35hp Zonshen engine. Assembly was very straight forward. Have only run it for a few hours, but for a home owner, this seems to be a great fit. Plenty of power, and it eats branches for breakfast. Produces a nice size mulch. Engine runs great, no complaints so far.
I love it just as expected — it’s awesome, way better then my old one I had.
MechMaxx was one of the best experiences I’ve had. The shipping was fast, and the customer support team was polite and quick to assist when I needed to update my address.
This machine is a work horse. I received this in a well packed crate. Instructions were very easy to follow. It’s very easy to assemble and easy to maintain. I would recommend this to everyone.
So far so good! It eats anything you feed it. Motor has plenty of power. Thumbs up!!
Great machine, solidly built, very robust — very satisfied.
Excellent machine, simple to assemble and operate.
Takes some time to assemble, but it handles the larger branches as advertised. Very happy with this wood chipper.
